Kauko-ohjain avaimenperä neljällä painikkeella

Tekniset tiedot:

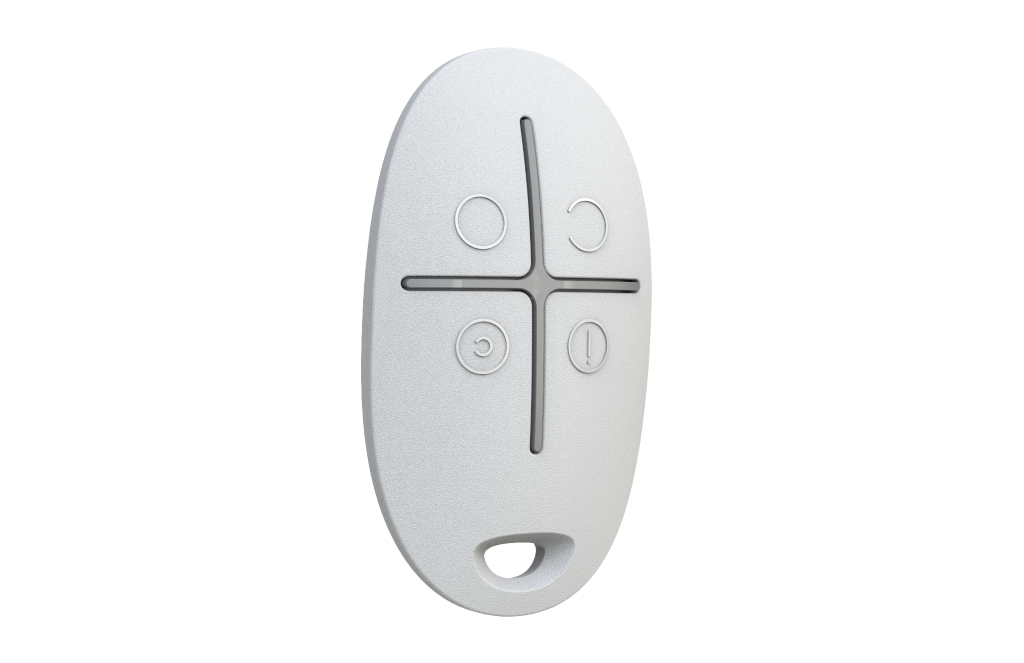

Classification: Four-button key fob with command delivery indication

Compatibility: Operates with all Ajax hubs, and range extenders, ocBridge Plus, uartBridge

Number of buttons: 4

False alarm prevention: Yes, long press or double press (firmware version 5.54.1.0 or higher. Manufacture date from March 19, 2020)

Deactivation of the panic button: Available

Power supply: Battery: CR2032 battery, 3 V

Battery life: Up to 5 years

Jeweller radio technology

Communication range with central unit — up to 1,300 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 20 mW. Block encryption based on AES algorithm. Device polling period — 12 - 300 s.

Operating temperature range: From -25°? to +50°?

Permissible humidity: Up to 95%

Dimensions: 65 × 37 × 10 mm

Weight: 13 g

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Service life: 10 years

Compliance with the security alarm standards

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-3:2009

EN 50131-5-3:2017

PD 6662:2017 (in terms of requirements for security system devices)

BS EN 50131

Security Grade (SG) 2

Radio Equipment Directive (RED)

ETSI EN 300 220-1 V3.1.1

ETSI EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Electromagnetic Compatibility Directive (EMC)

ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

EN 62368-1:2014/A11:2017

EN 50385:2002/EN 62479:2010

Environmental class according to EN 50131 III

Complete set

SpaceControl keyfob

CR2032 battery (pre-installed)

User's guide
