Tekniset tiedot

Classification: Security system control panel with four in-built channels for external communication and support of detectors with photo cameras

Installation: Indoors

Connected devices: 200

Video surveillance support: 100 cameras and DVRs

Users: 200

Rooms: 50

Security groups: 25

Connected ReX: 5

Connected sirens: up to 10

Scenarios: 64

MotionCam detectors support

Mobile Apps: iOS 13.0 and later. Android 5.0 and later

Communication channels: 2 SIM cards 2G (GSM900/DCS1800 (B3/B8)), 3G (WCDMA 850/900/2100 (B1/B5/B8)), LTE (FDD B1/B3/B5/B7/B8/B20), Wi-Fi (802.11 b/g/n), Ethernet

Alarm signals: Delivery time: 0.15 sec

Notification types: SMS, call, push-notification

Switching between 2G, 3G, LTE Instant

Switching between the SIM-cards 4 minutes

CMS connectivity: Contact ID, SIA (DC-09), CMS software supporting visual alarms verification

Operating system: OS Malevich

Power supply: 110-240 V with pre-installed battery, 6 V with alternative 6V PSU power supply (6V PSU not included)

Energy consumption from the 110-240 V grid — 10 W

Built-in back-up battery: Li-Ion 3 ?·h. Ensures up to 15 hours of operation when using SIM card only

Jeweller radio technology: Communication range with detectors — up to 2,000 m in an open space. Two-way communication between devices

Jeweller Radio frequency bands:

866.0 – 866.5 MHz

868.0 – 868.6 MHz

868.7 – 869.2 MHz

905.0 – 926.5 MHz

915.85 – 926.5 MHz

921.0 – 922.0 MHz

(depends on the region of sale)

Self-adjusting RF output power — up to 20 mW

Block encryption based on AES algorithm

Detector polling period — 12?300 s

Frequency hopping

Wings radio technology: Transmission of visual confirmations. Delivery verification of packages

Wings Radio frequency bands:

866.0 – 866.5 MHz

868.0 – 868.6 MHz

868.7 – 869.2 MHz

905.0 – 926.5 MHz

915.85 – 926.5 MHz

921.0 – 922.0 MHz

(depends on the region of sale)

Self-adjusting RF output power — up to 20 mW

Block encryption based on AES algorithm

Operating temperature range: From ?10°? to +40°?

Anti-sabotage

Forgery prevention

Notifications about jamming

Tamper to detect back lid opening and unmounting from SmartBracket

Remote set up and testing

Dimensions 163 × 163 × 36 mm

Weight 351 g

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.

Service life: 10 years

Complete set

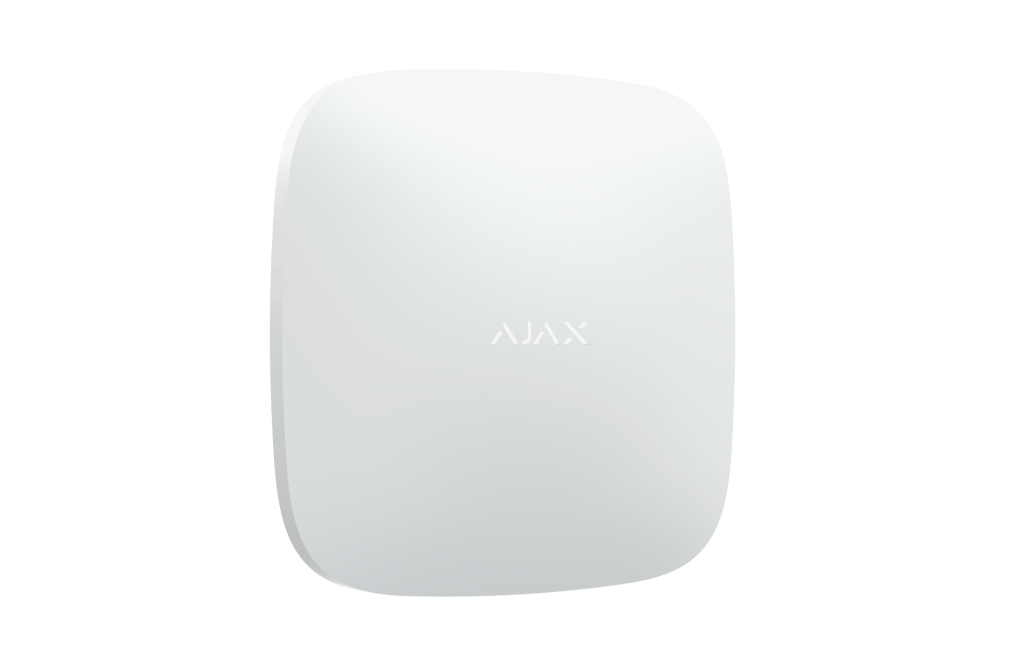

Ajax Hub 2 Plus control panel

SmartBracket mounting panel

Power cable

Ethernet cable

Installation kit

SIM card (depends on region)

User’s guide
