Tekniset tiedot

Classification: Radio channel touch keypad

Type of keypad: Wireless, touch

Installation method: Indoors

Compatibility: Operates with all Ajax hubs, and range extenders

Number of buttons: 15

Duress code: Yes

User Passcode: Yes

Protection against passcode guessing: Yes

Arming/disarming indication: Yes

Power supply: Battery: 4 × ??A batteries, 3 V (batteries are installed in pairs)

Battery life: Up to 2 years

Jeweller radio technology: Communication range with central unit — up to 1,700 m in an open space. Two-way communication between devices. Operating frequencies — 868.0 - 868.6 MHz. Self-adjusting RF output power — up to 20 mW. Block encryption based on AES algorithm. Keypad scanning period — 12 - 300 s.

Temperature sensor: Available

Operating temperature range: From -10°? to +40°?

Permissible humidity: Up to 75%

Anti-sabotage: Protection against fraud

Jamming detection: Tamper-resistant

Remote setting and testing

Dimensions: 150 × 103 × 14 mm

Weight: 197 g

Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty

Service life: 10 years

Compliance with the security alarm standards

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-3:2009

EN 50131-5-3:2017

PD 6662:2017 (in terms of requirements for security system devices)

BS EN 50131

Security Grade (SG) 2

Radio Equipment Directive (RED)

ETSI EN 300 220-1 V3.1.1

ETSI EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Electromagnetic Compatibility Directive (EMC)

ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

EN 62368-1:2014/A11:2017

EN 50385:2002/EN 62479:2010

Environmental class according to EN 50131 II

Complete set

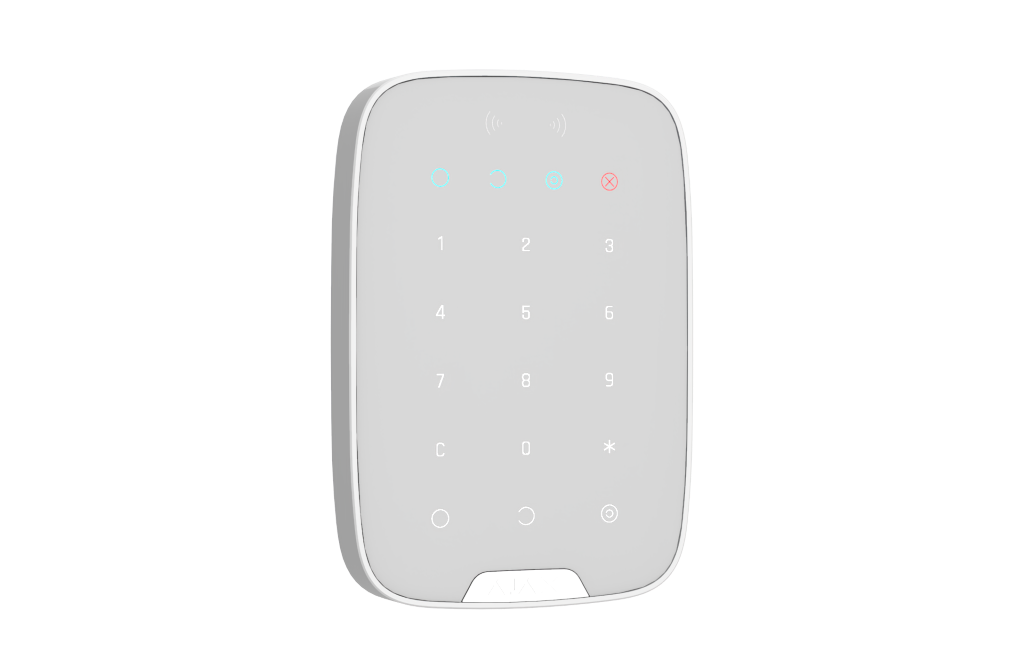

KeyPad touch keyboard

SmartBracket mounting panel

4 ??? batteries (pre-installed)

Installation set

User's guide
